Capacity and Dimensions
Model | Sheet Length | Steel | Stainless | Aluminium | Dimensions | Weight |
|---|---|---|---|---|---|---|
MFC 2025 | 2050 | 2,5 | 1,5 | 3,5 | 3350 / 2100 / 1860 | 2550 |
MFC 2520 | 2550 | 2 | 1,2 | 3 | 3830 / 2100 / 1860 | 3000 |
MFC 3215 | 3200 | 1,5 | 1 | 2 | 4450 / 2100 / 1860 | 3300 |
Unit of length : mm / unit of weight : kg
Standard Features
- 180 mm opening height capacity on the upper beam.
- Eccentric upper beam power transmission system for rapid clamping/unclamping.
- 10 and 25 mm wide single piece folding tools as 2 sets.
- ERFOLD BASIC CNC LBL Cnc control software on 15.6” touchscreen controller with swivel arm.
- 750 mm servo backgauge system with feather grooves.
- 0-150° folding angle.
- Manual folding beam adjustment.
- Front light barriers.
- Solid lower beam tool without channels.
Optional Features
- 1000 or 1500 mm servo backgauge system with rectangular sheet support table.
- 60 or 90 mm high segmented goat foot tool set.
- Manual crowning system.
- Servo folding beam adjustment.
- ERFOLD ADVANCED 2D/3D Cnc Graphic Control Software.
- Omega geometry upgrade on lower and folding beam.
- Manual conical backgauge finger.
- Motorized conical backgauge system.
- Pneumatic goat foot tool quick clamping system.

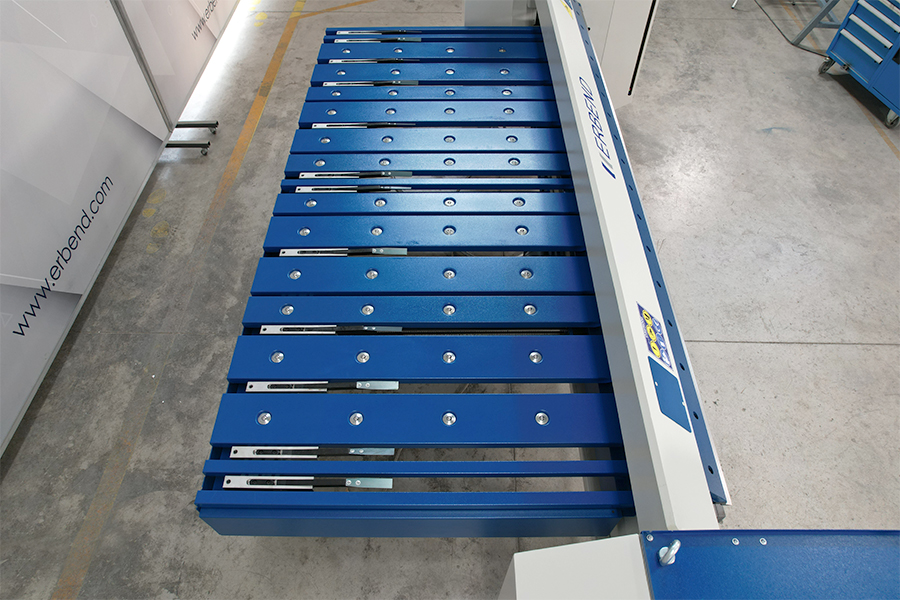

Standard 750 mm and optional 1000/1500 mm long servo backgauge system with feather grooves and sheet support table
Std Erfold line by line or optional 2D graphical cnc controller with iconic and user friendly interface on 15.6’’ touchscreen

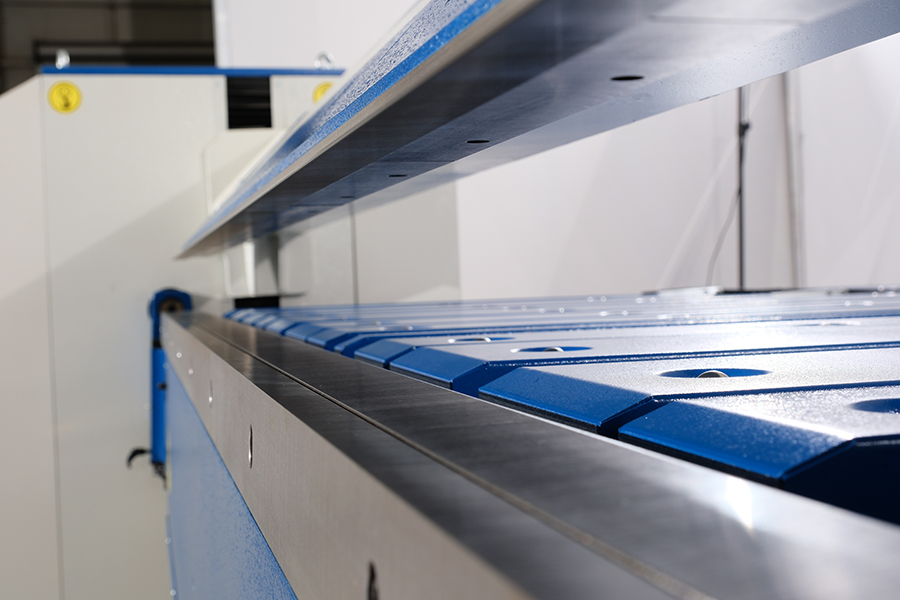

Eccentric transmission upper beam with safety stop and rapid folding beam for higher productivity

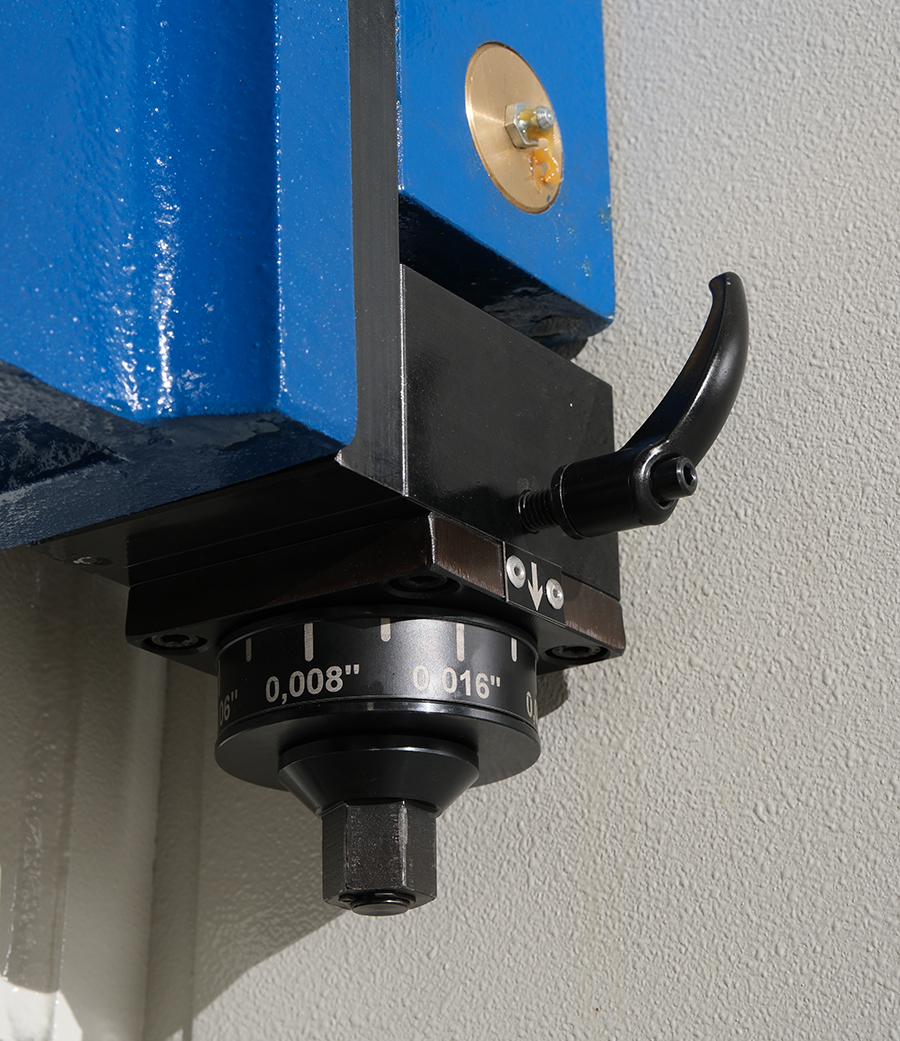

Standart manual and optional motorized folding beam height adjustment

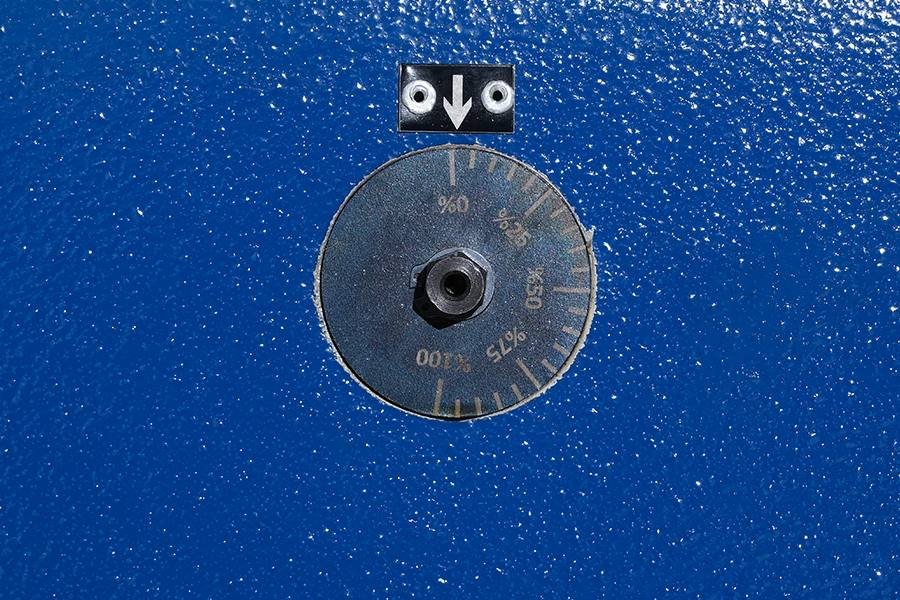

Optional manual crowning
3 switch controlled foot pedal
Tool & Beam Geometry
